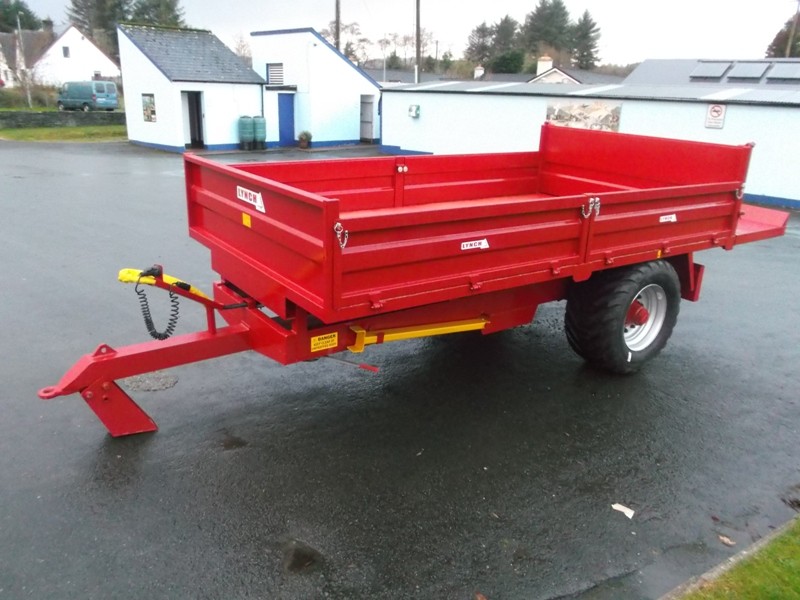

Single Axle General Purpose Tipping Trailer

• Specifications
• Features
• Gallery
• 3 Reasons To Buy
• Contact

Length	10ft to 15ft
Width	8ft standard width
Max Speed	40Km/hr
Gross Capacity	12,500Kg
Axle	8 stud or 10 Stud commercial, depending on trailer length
Standard Wheel Size	385-65R22.5 (many other options available)
Flooring	Aluminium Chequer Plate
Cross-members	3” Channel Iron @ 16” centers
Paint	Sandblasted Primer Top Coat
Brakes	Standard Hydraulic with parking brake and breakaway brake
Lighting	LED lights as standard Side Marker Lights, Number Plate Light Rear reflective marking Side reflective markers
Options	High level lighting (front and rear), Internal Light Muttiple dividing gate Single wheel options also available

10x6 6 Ton Trailer on 400-60 Tyres

12x7 6 Ton Trailer on 400-60 Tyres

12x7 10 Ton trailer on floatation 560-45R22.5

12x7 10 Ton Trailer on standard 385 tyres

13x7 8 Ton trailer on 500-50R17 floatation tyres

13x8 Trailer with 550-45R22.5 floatation tyres and 2ft sides

13x8 Trailer with 550-45R22.5 floatation tyres and hydraulic back door

14x8 Trailer tipped up showing plentiful cross members and high tipping angle

14x8 Trailer with sprung drawbar and floatation tyres

14x8 with 550 floatation tyres, grain drop-sides and rear bale extension

14x8 Tipper with straight drawbar design, twin tipping rams, floatation tyres and bale extension.

Close up view of bale extension and tailboard closing arrangement.

Close up view of the rear corner reinforcement.

A handy first day! 12 bales on a 14ft trailer. Note the side-rails didn’t have to be removed as this trailer was fitted with our unique lock-in system.

3 reasons to buy a Lynch General Purpose Tipping Trailer

1. STRENGTH
2. MULTIFUNCTIONAL - with bale extension , grain sides, etc
3. DURABILITY

Contact Us Today

If you would like to discuss any aspect of our products please call us on +353 26 45044 or email us directly on [email protected].
